A connector profile turns the seam between two bamboo charcoal wall panels into a visible part of the wall. It may cover two cut edges, draw a contrasting line or join panels that have prepared grooves. It will not correct a poor layout or fit a panel simply because both products are sold as wall-panel accessories.
Before adhesive or fasteners, place two panel offcuts beside the exact profile. Check panel thickness, edge shape, channel depth and the visible face of the trim. If those four details do not work on a table, the joint will not improve on the wall.
Identify the panel edge first
The name bamboo charcoal wall panel covers products with different edges. A square edge may meet another panel directly or sit inside an H-shaped profile. Another system may use a factory groove and a narrow insert. Tongue-and-groove panels form a different joint again.
Write down the construction of the panel you intend to use:
- nominal and measured thickness at the edge;
- square edge, factory groove or locking joint;
- surface film and whether it wraps around the edge;
- connector approved for that panel and edge;
- documented method for fixing or inserting the connector.
Do not choose the part by color alone. A black line in a product photo could be an aluminum divider, a plastic insert or part of the panel's own joint. The section drawing and part number settle that question.
If you are still comparing product families, use the bamboo charcoal wall panel buying guide to collect the technical sheet, edge detail and accessory list before ordering.
Inspect the connector in section
An H-trim normally has two channels that receive adjacent panel edges while the center strip remains visible. The exact geometry varies. One profile leaves a narrow line; another creates a wider divider. Some have a tail that enters a prepared groove rather than holding the full panel edge.

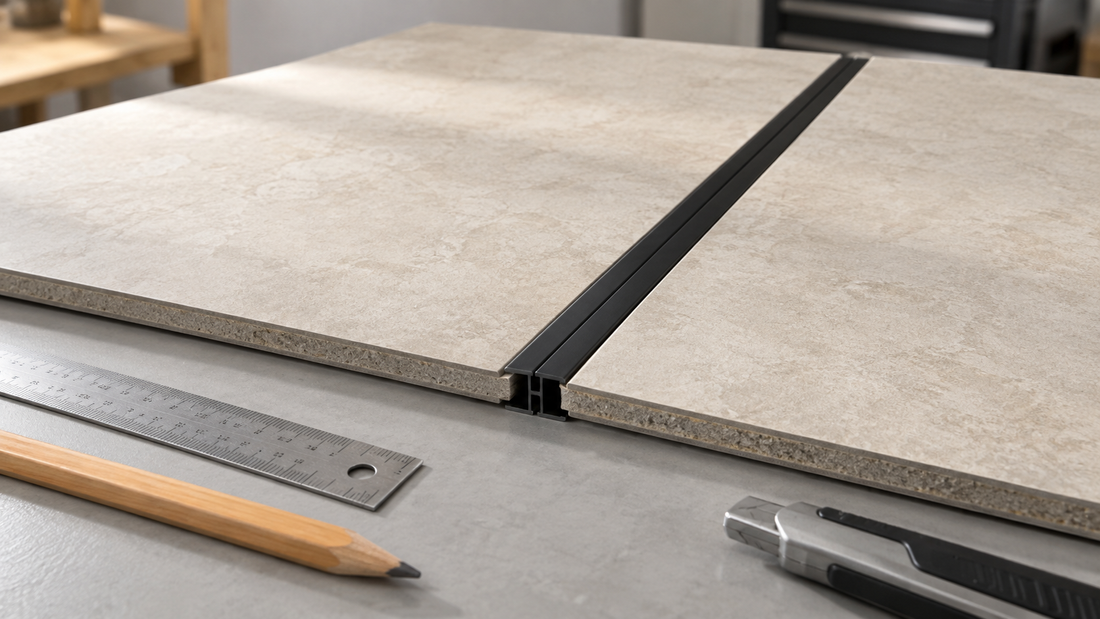

Use a short sample of the profile and two panel offcuts. Insert both edges without adhesive. The faces should remain in the same plane. The trim should not rock, scrape the decorative film or need the kind of force that can crush an edge.
Look at the sample from the front and side. The front view shows the finished line width. The side view reveals whether the profile lifts one panel above the other. This small check can change the starting position for every sheet on the wall.
A U.S. supplier currently uses the term H-Trim Wall Panel Connector for a metal profile that joins its own 5 mm panels edge to edge. That description is useful for U.S. search vocabulary, but its dimensions apply only to the compatible products named by that seller.
Mark the profile from the assembled layout
The required length depends on where the seam starts and stops. Baseboard, ceiling trim, an exposed end or a horizontal divider can all change the cut point. Measure from the assembled layout rather than copying the overall wall height.
Lay the profile beside the panels and mark the cut with a fine pencil. If one profile will enter another at the end, build that intersection from offcuts first. The visible line needs a defined finish; a small accidental gap at the ceiling or baseboard may draw more attention than the seam itself.
Check the measurement again before cutting. Long profiles are easy to reverse, and top and bottom may differ when another trim closes one end. Mark the face and orientation if the section is not symmetrical.
Match the cutting method to the profile material
A thin plastic insert may be scored and separated. An aluminum H-trim may require a fine-tooth saw or another metal-cutting tool. Rigid PVC can crack if it is bent after a shallow score, especially when the piece is cold. The profile manufacturer's instructions control the tool, support and edge treatment.
Protect the finished face with tape only when the manufacturer permits it. Cut on a stable support, away from panels that have already been fixed to the wall. Dress any burr with the approved method, then test the cut end against an offcut. A rough edge can catch the surface film before the damage is visible from the front.
The practical rule is simple: test one short piece first. Do not turn a technique demonstrated on one material into a universal instruction for every black connector profile.
Build one complete seam without adhesive
Place two panels, the connector and the parts that finish the seam at the top and bottom on a flat surface. Assemble them in the same order planned for the wall.
Check these five points:
- Both panels enter the connector to the same depth.
- Their faces remain flush across the seam.
- The exposed line keeps the same width from end to end.
- The cut end does not catch or lift the panel film.
- The upper and lower trim details close the connector as shown in the system drawing.
If the fit requires heavy force, stop. Do not spread a channel with a screwdriver or sand the panel edge by guesswork. Compare the part number, channel opening and actual panel thickness. The connector may belong to a different size or edge type.
Add every visible profile to the wall layout
Each profile adds a line and occupies width. Draw the wall elevation with the full face width of each panel and the exposed width of every connector. Mark outlets, switches, doors, corners and open ends on the same drawing.
This reveals the size of the last piece before anything is glued. It also shows whether a dark profile aligns with the center of the wall, a television edge or another deliberate reference. A layout that ignores connector width often ends with a narrow strip at the final corner.
Review the lines from the normal viewing position. Black and metallic profiles can be more noticeable than a color-matched seam. A small offset that looks harmless from two feet away may read as a crooked wall from the doorway.
The wall itself also needs to be ready for the selected mounting system. The wall-preparation guide for bamboo charcoal panels covers the moisture, substrate, residue and flatness checks to complete before permanent work begins.
Do not treat the connector as a fastener without documentation
One profile may only finish the joint while adhesive holds the panels. Another may be part of the mounting sequence and receive screws. A separate insert may be installed after the panel faces are fixed.
Confirm the sequence for the exact system:
- Does the connector go on before the second panel or after both panels?
- Is adhesive allowed inside the channel?
- Is the profile fixed to the substrate?
- Does the assembly require a movement gap?
- Can one panel be removed without disturbing the adjacent sheet?
China Wall Panel's current bamboo charcoal wall panel installation guide describes three joint methods for its products, including grooves, clips and metal lines. It also calls for screws with some line details. That is evidence that joint sequence is system-specific, not a universal instruction for another brand.
If the supplier cannot answer these questions, request a section drawing and test the joint with samples. Keep permanent work on hold until the panel, trim and fixing method are documented as one assembly.
Problems the dry fit should catch
| Problem | What the sample shows | What to verify |
|---|---|---|
| Connector sized for another thickness | Panel rocks or will not enter the channel | Part number, channel opening and measured panel edge |
| One face sits higher | A ridge appears across the seam | Profile geometry, backing and flatness of the support |
| Cut is rough | Burr, crack or crushed film at the end | Approved tool, support and a new test cut |
| Line drifts from the reference | Connector looks tilted from the room | Starting line and level or laser check |
| Narrow strip remains at the corner | Layout omitted the combined joint widths | Complete elevation before adhesive |
| Connector ends in an open gap | Cut length ignores the finishing trim | Top and bottom intersection details |
Common questions
Does every bamboo charcoal wall panel need a connector profile?
No. Some panels use a separate profile, some have a groove or lock, and others may be joined by a different documented method. The selected panel system and the intended wall layout determine the joint.
Can I use an H-trim from another manufacturer?
Only after comparing the dimensions and approved installation sequence. Matching color is not enough. The channel must fit the measured edge, and the assembly must follow the panel and profile documentation.
What tool cuts a black wall-panel connector?
Identify its material first. Aluminum, rigid PVC and a flexible insert may require different tools. Make one supported test cut using the profile manufacturer's instructions.
Should the profile be glued to the wall?
The answer depends on the system. It may be a decorative insert, a fixed trim or part of an adhesive assembly. Do not assign it a fastening role without the exact detail.
How can I make a connector less noticeable?
Match its finish to the panel or place the line deliberately within the elevation. Dry-fit two panels and view the sample in daylight and room lighting before setting the wall layout.
Source record checked October 30, 2026
- Aesthedge 2024 product catalog, checked for its connecting-line sections and the illustrated sequence using separate inserts.
- China Wall Panel installation guide, checked for its separate grooved, clip and metal-line joint methods.
- LuxeLayer H-Trim Wall Panel Connector, checked for current U.S. terminology and one seller's explicit 5 mm compatibility statement.
Keep the panel technical sheet and connector section drawing beside the wall elevation. A dry-fit seam made from two offcuts should reveal a mismatch before the same detail reaches the middle of a finished wall.
